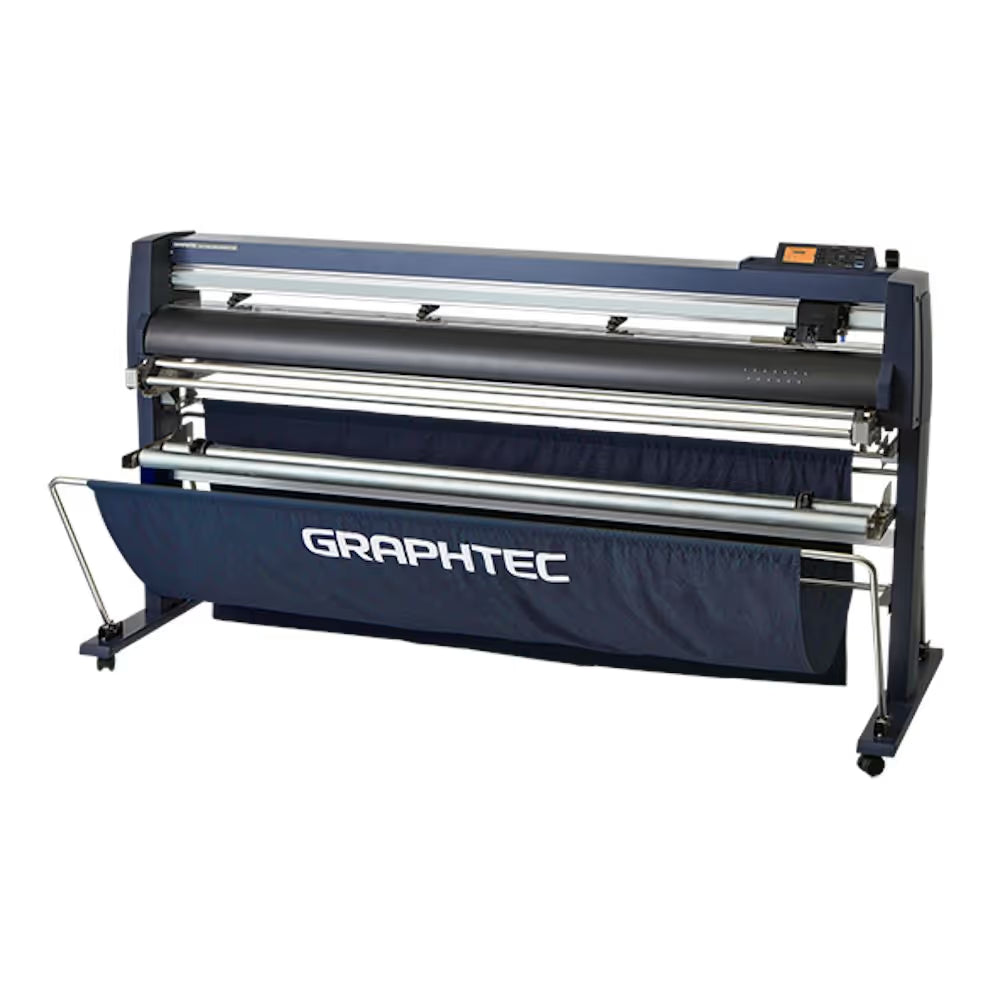

Graphtec FC9000 High-performance Cutting Plotter

The FC9000 Series is a high-performance cutting plotter built for precision and speed, with up to 58.5 ips cutting speed and 4.0G acceleration. It handles a wide range of materials—from vinyl to reflective and automotive films—making it ideal for signage, graphics, and production environments. Available in multiple widths, it delivers reliable, professional results across diverse applications.

• Data Link Function (Barcode Management & Continuous Cutting)
  Automates job recognition and enables seamless, continuous cutting for improved workflow efficiency

• Continuous Cutting
  Reduces downtime by processing multiple jobs consecutively without manual intervention

• Supports Coloured Marks & Specialty Media
  Delivers accurate cutting across a wide range of materials, including specialty and printed media

• Adobe Illustrator Crop Mark Compatibility
  Ensures precise alignment using standard crop marks for easy integration into design workflows

• Segment Area Compensation (XV)
  Maintains cutting accuracy over long jobs by automatically correcting positioning
• Expanded Cutting Area
  Maximises usable media space, reducing waste and improving productivity

Data Link Function (Barcode Data Management/Continuous Cutting)

By reading the Graphtec original Barcode, FC9000 automatically detects its linked data from PC or USB flash memory. This function is available regardless of which printer or RIP software is used.

Data output via USB flash memory without PC

When cutting data designed with Cutting Master 5 or Graphtec Studio 2 are saved to USB flash memory, it can be output directly to the cutting plotter by plugging in. This simplified work-flow enables users to operate without a computer.

Continuous Cut (Data Link function)

Barcode data management allows cutting different data sequentially by detecting the “Start Mark” of the new Barcode. Sequential Print & Cut process with roll-media is now available.

Reliable long-length tracking (Automatic Take-up Roller)

It supports long-length, 15m (50ft) (Operated with Graphtec specified media and conditions.) and makes possible to cut large signs/pops with stable paper carriage and high accurate cutting quality. In addition, if Automatic Take-up Roller as option is equipped to plotter, it becomes possible to automatically wind media and improve your work efficiency.

Automatic Take-up Roller (option)

The media is detected by the ultrasonic sensor and rolled up automatically.

• Corresponding Models: FC9000-140/160
• Guaranteed accuracy length: 20m (Under 1.2m per job)
• Maximum diameter of winding roll: φ180mm

• Winding conditions:
  – End face of roll media and end face of paper tube should be aligned.
  – Width of roll media should be the same as width of paper tube at winding side.
• It cannot be winded if media is folded or overlapped inside the basket.

FC9000-75

Max. cutting area (W x L) (*1)

762mm × 50m

Cutting area of guaranteed accuracy (*1)

742mm × 15m

Mountable media width (*2)

Min. 50mm

Max. 920mm(36.2 inch)

Mountable roll media diameter

76 to 200mm

FC9000-100

Max. cutting area (W x L) (*1)

1067mm × 50m

Cutting area of guaranteed accuracy (*1)

1047mm × 10m; 762mm × 15m

Mountable media width (*2)

Min. 50mm

Max. 1224mm (48.1 inch)

Mountable roll media diameter

76 to 200mm

FC9000-140

Max. cutting area (W x L) (*1)

1372mm × 50m

Cutting area of guaranteed accuracy (*1)

1352mm × 10m; 894mm × 15m

Mountable media width (*2)

Min. 50mm

Max. 1529mm(60.1 inch)

Mountable roll media diameter

76 to 200mm

FC9000-160

Max. cutting area (W x L) (*1)

1626mm × 50m

Cutting area of guaranteed accuracy (*1)

1607mm × 10m; 894mm × 15m

Mountable media width (*2)

Min. 50mm

Max. 1850mm (72.8 inch)

Mountable roll media diameter

76 to 200mm
